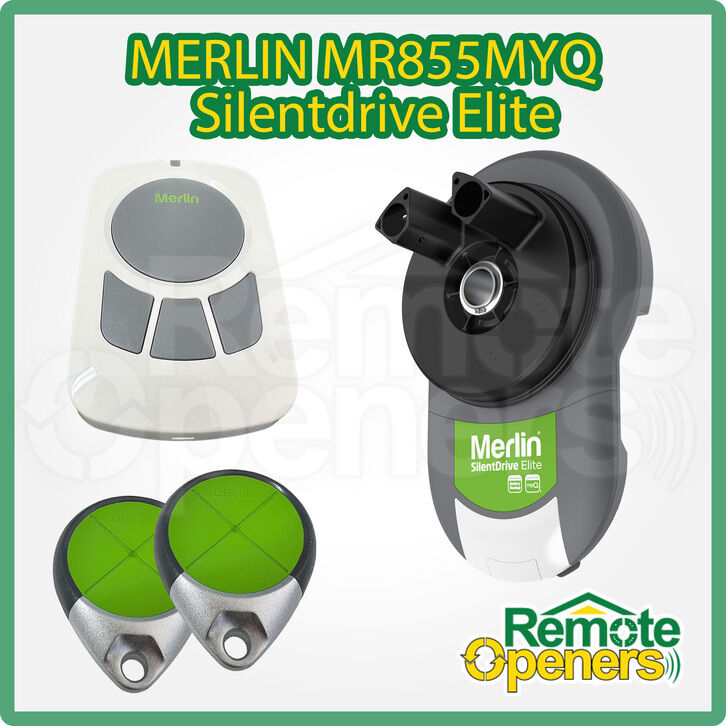

MERLIN MR855MYQ SilentDrive Elite Roller Door Motor

Free Shipping Australia-Wide

Package Includes

  • 1 × MERLIN MR855MYQ SilentDrive Elite Roller Door Motor

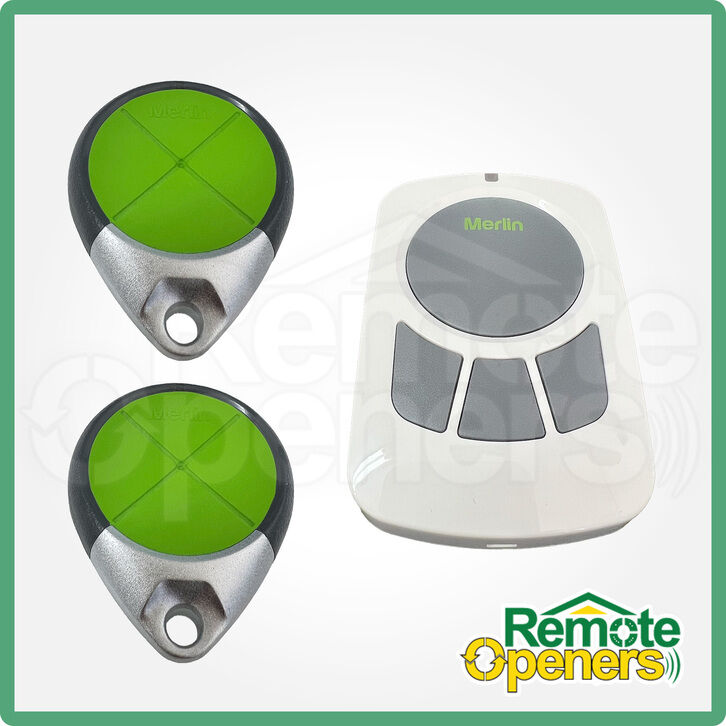

  • 2 × Premium E970M Remote Controls

  • 1 × E148M Wireless Wall Button

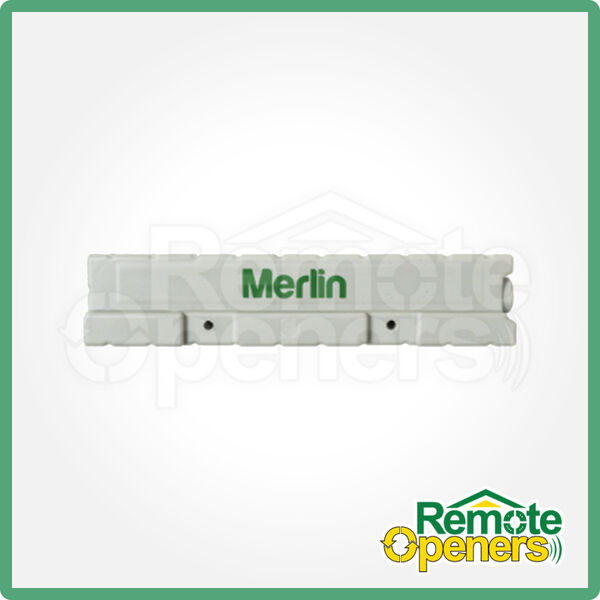

  • 1 × Weight Bar

  • 1 × Installation Instructions

Warranty

7-Year Warranty

Key Features

  • myQ® Compatible Technology: Allows users to remotely monitor and control their garage door opener, create schedules, and receive activity alerts from virtually anywhere.

  • Battery Backup Compatible: Provides continued access to the garage door during a power outage when paired with a compatible battery backup system.

  • Security+2.0® Technology: Incorporates encrypted rolling-code technology for enhanced security and reliable remote operation.

  • LED Courtesy Light: Provides convenient illumination when operating the garage door.

Specifications

General

  • Motor: 24V DC motor with thermal overload protection

  • Input Voltage: 24V AC

  • Maximum Rated Door Area: Up to 18 m²

  • Drum Rotations: 4.5

  • Maximum Door Weight: Up to 120 kg

  • Maximum Peak Pulling Force: 550 N

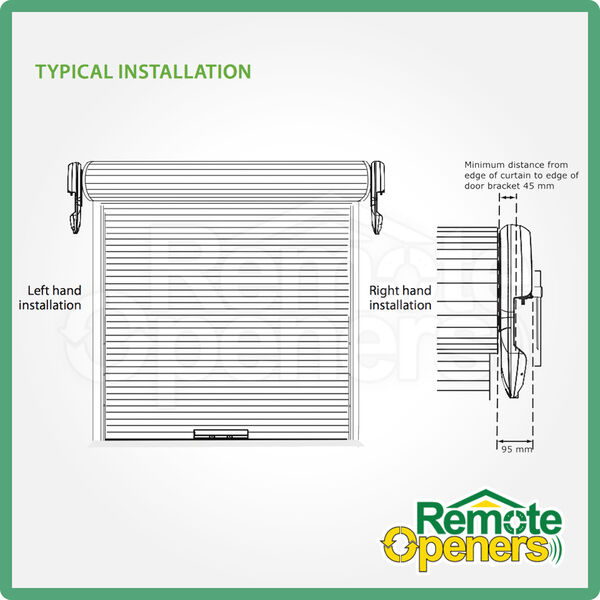

  • Minimum Side Room: 45 mm

  • Radio Frequency: 433.30, 434.54 and 433.92 MHz AM

  • Security: Security+2.0® encrypted rolling-code technology

  • Memory Capacity: Up to 64 memory registers

  • Courtesy Light: LED

  • Noise Rating at 1 m: 57 dB

Door Specifications

  • Maximum Lifting Capacity Under Spring Tension: 20 kg

  • Suitable Door Type: Steel spring-balanced roller doors

Door Opening & Closing Times

  • Opening Time: Approximately 13 seconds

  • Closing Time: Approximately 13 seconds

  • Based on a 2.3 m high door

Door Dimensions

  • Maximum Door Height: 4.5 m

  • Available Door Widths: 4.0 m and 6.0 m

  • Application: Single dwellings

Suitable Replacement

The MERLIN MR855MYQ SilentDrive Elite is suitable as a replacement for:

  • MERLIN MR850

  • MERLIN MR850EVO

  • MERLIN MR855EVO

  • Equivalent compatible roller door openers

Please ensure your existing door, dimensions and installation requirements are compatible with the specifications above before purchase.

Specifications

Peak pulling force 550N
Maximum Door Weight Up to 120kg
Maximum Recommended Door Size 18m2
Minimum Side Room Requirement 45mm
Motor Type 24V DC Permanent Magnet
Motor Power 100W
Input Voltage    240V AC
Operating Frequency 433.30, 434.54
and 433.92 MHz with Security +2.0
technology
Coding System Merlin Security +2.0 technology
Code Combinations 3.4x1038 code combinations
Storage Capacity

Up to 64 memory registers



Courtesy Light 12 premium ultrabright LEDs
Optional Extras

MYQ Smart Phone Compatibility Kit

Battery Backup



WARNING! This product contains Lithium coin batteries.

KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

For more information please review the button battery safety information available on the Australian Competition & Consumer Commission (ACCC) website

SKU MR855MYQ_1
Brand Merlin
Shipping Weight 8.6000kg
Shipping Width 0.320m
Shipping Height 0.220m
Shipping Length 0.480m
Shipping Cubic 0.033792000m3
