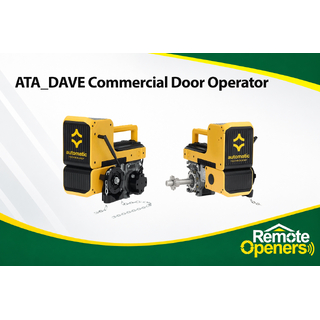

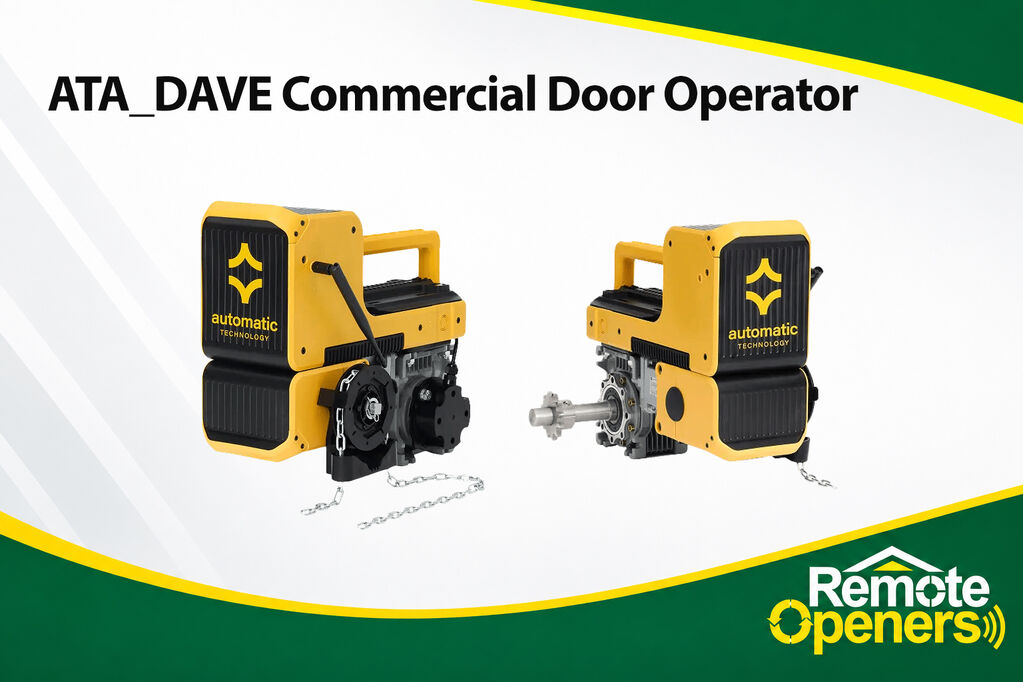

Dave Commercial Door Operator
Free Shipping Australia-Wide
Product Overview
Introducing the Dave® Commercial Door Operator by Automatic Technology Pty Ltd — an innovative commercial door automation solution engineered for powerful lifting performance, intelligent operation and exceptional versatility.
Featuring advanced Omnivolt® swappable power cartridge technology (patent pending), Dave is designed to accommodate a wide range of commercial door applications. Its interchangeable power cartridge system provides flexibility across compatible single-phase and three-phase power configurations, making it a versatile choice for commercial installations.
With intelligent machine-learning technology, Dave continuously monitors door operation and adapts its performance to support smooth, consistent and reliable operation. Combined with a wireless-first wall console, PE beam compatibility and responsive torque delivery, Dave is engineered to meet the demands of modern commercial environments.
Designed for doors weighing up to 1,000 kg when properly balanced and installed within the manufacturer's specifications, the Dave® Commercial Door Operator delivers a practical combination of power, adaptability and smart control.

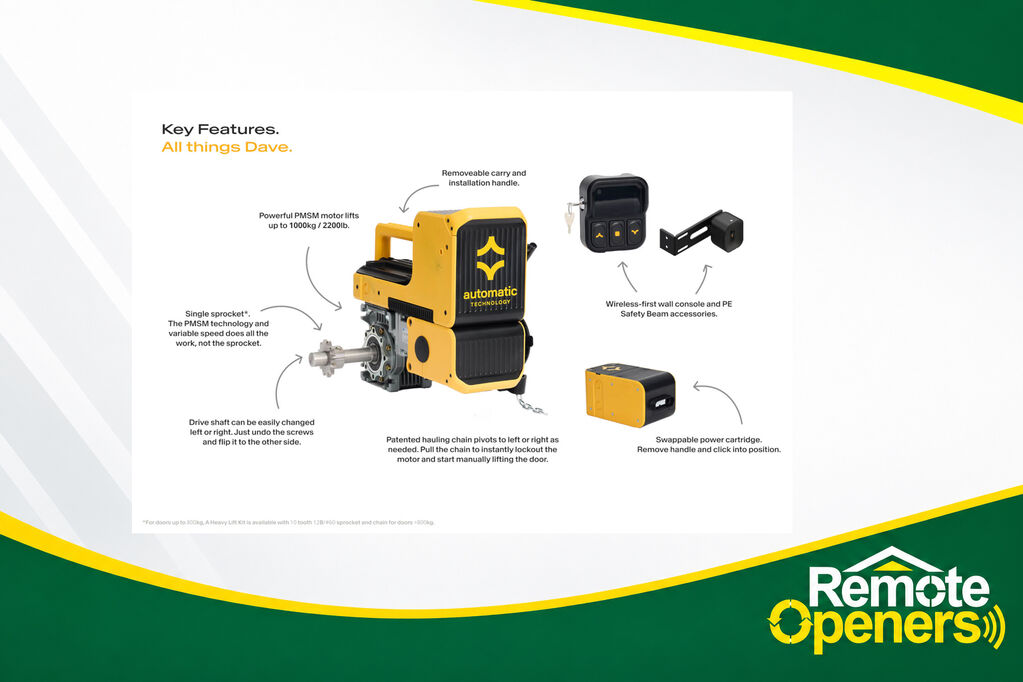

Key Features and Benefits
- Powerful Lifting Performance: Designed for balanced commercial doors weighing up to 1,000 kg, subject to installation conditions and manufacturer specifications.
- Omnivolt® Power Cartridge Technology: Swappable power cartridge design supports compatible power configurations for greater installation flexibility.
- Intelligent Machine Learning: Continuously profiles door operation and adjusts performance to help maintain smooth and consistent movement.
- Wireless Wall Console: Convenient wireless operation with Bluetooth-enabled configuration and setup functionality.
- Flexible Power Options: Compatible power cartridges are available for single-phase 230–240V and three-phase 400–480V supplies.
- Commercial-Grade Design: Engineered for demanding commercial door applications, with a maximum duty cycle of 60%.
- Enhanced Safety Compatibility: Supports PE beam integration for compatible safety installations.
- Five-Year Warranty: Supplied with a 5-year warranty for added peace of mind, subject to applicable terms and conditions.
Package Includes
- Dave® commercial door drive unit
- Removable 120–240V single-phase power cartridge
- Wireless wall console
- 10B drive chain, joiner and chain gauge
- Shaft, key and circlip
- 10B 12-tooth drive sprocket
- Hauling chain
- Adaptor flange
- Mounting spacer
- Mounting hardware
- Product brochure
Technical Specifications
Dave® Drive Unit
| Specification | Details |
|---|---|
| Part number | 101510 |
| Motor type | PMSM |
| Reducer ratio | 50:1 |
| Rated output torque | 32 Nm (23.5 ft-lb) |
| Maximum door weight | Up to 1,000 kg when balanced |
| Maximum rated load | 450 N |
| Operating temperature | -20°C to +65°C |
| Environment | Indoor use only |
| Output drive shaft diameter | 25.4 mm |
| Output drive shaft length | 95 mm |
| Standard operator sprocket | 12 teeth, 10B |
| Optional sprocket | 10 teeth, 12B |
| Overall side-room requirement | 290 mm |
| Drive unit weight (with shaft and sprocket) | 11.4 kg |
| Reducer output speed (at 3,000 RPM motor speed) | 60 RPM |
| Maximum duty cycle | 60% |
| Onboard receiver memory | 64 devices |
| IP rating | IP42 |
Wireless Wall Console
| Specification | Details |
|---|---|
| Control button range | Up to 20 metres* |
| Bluetooth configuration range | Up to 15 metres† |
| Display | 4-line × 20-character LCD |
| LCD backlight | Yes |
| Battery power | 2 × D-size 1.5V batteries |
| Stated battery life | Up to 5 years* |
| Alternative power supply | 5V DC adaptor |
| Additional power option | Direct wiring to the operator |
Omnivolt® Power Cartridge Options
| Specification | LV2 Cartridge | HVN4 Cartridge |
|---|---|---|
| Part number | 101640 | 103070 |
| Description | Omnivolt® LV2 | Omnivolt® HVN4 |
| Connection type | Single-phase, pre-corded | Three-phase, direct hard wiring with neutral |
| Input power | 1,000 W | 1,000 W |
| Input voltage | 230–240V AC, 50/60 Hz | 400–480V AC, 50/60 Hz |
| Cartridge weight (with power cord) | 1.6 kg | 1.6 kg |
| Maximum current consumption | 5 A at 240V | 5 A at 240V, as specified |
Warranty
The Dave® Commercial Door Operator comes with a 5-year warranty, providing added confidence in your investment. Warranty coverage is subject to the manufacturer's terms and conditions.
Delivery
Free shipping Australia-wide.
Important Installation Information
The Dave Commercial Door Operator is intended for indoor use. Correct installation, door balancing, compatible safety devices and selection of the appropriate power cartridge are essential for safe and reliable operation. Please confirm power supply compatibility and installation requirements before ordering.
Choose the Dave Commercial Door Operator by Automatic Technology Pty Ltd for a versatile, intelligent and powerful solution for modern commercial door automation.
| SKU | ATA_DAVE_1 |
| Brand | Dave |
| Shipping Weight | 20.0000kg |
| Shipping Width | 0.440m |
| Shipping Height | 0.260m |
| Shipping Length | 0.520m |
| Shipping Cubic | 0.059488000m3 |
