MERLIN MR655MYQ SilentDrive Essential Roller Door Motor

Free Standard Delivery Australia-Wide

Package Includes

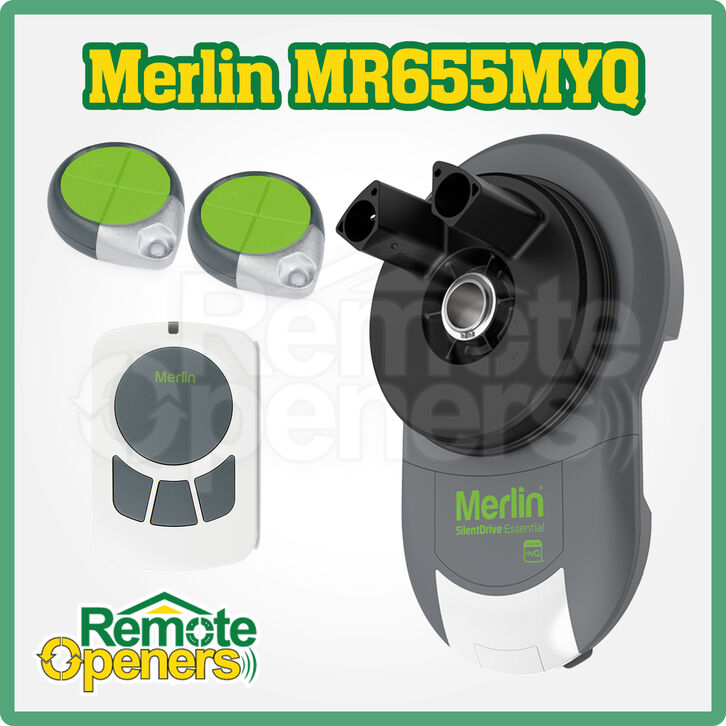

• MERLIN MR655MYQ SilentDrive Essential Roller Door Motor

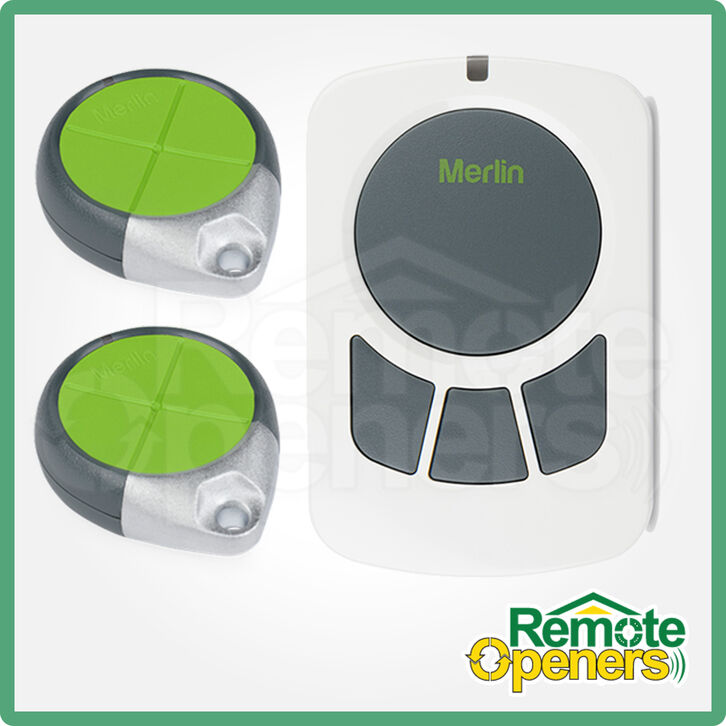

• Premium E970M Remote Controls × 2

• E148M Wireless Wall Button

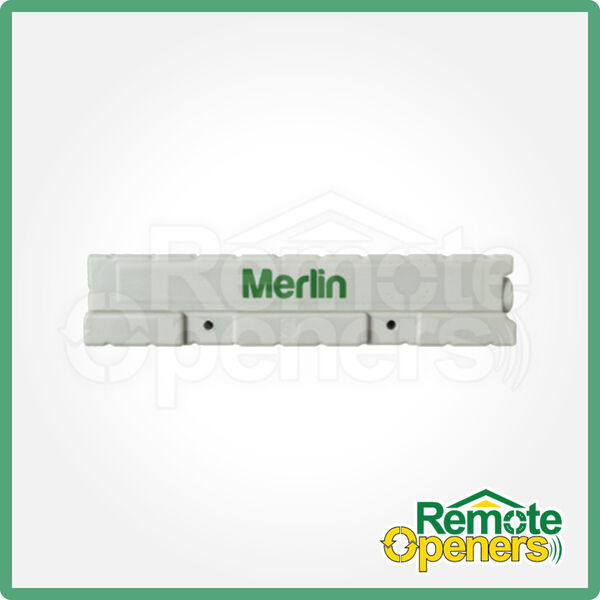

• Weight Bar

• Installation Instructions

• 5-Year Manufacturer’s Warranty
  Warranty covers failure resulting from a manufacturer’s fault.

Specifications

General Features

• 24 V DC motor with thermal overload protection

• Input voltage: 240 V AC

• Rated door area: up to 16.5 m²

• Drum rotations: 4.5

• Maximum door weight: up to 100 kg

• Maximum peak pulling force: 500 N

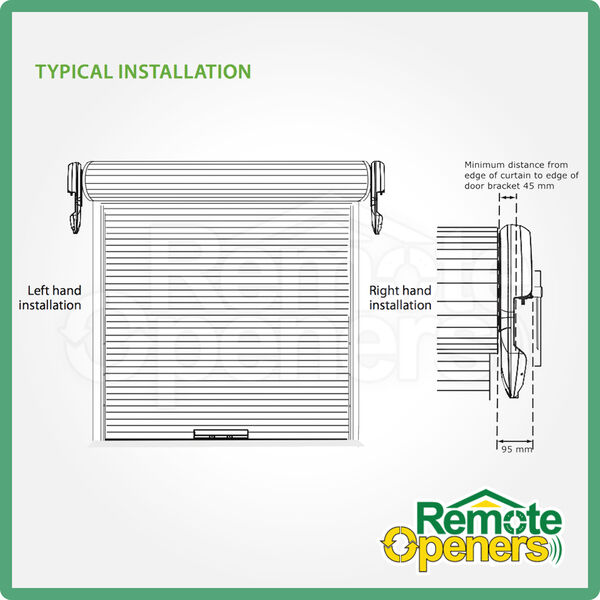

• Minimum side room required: 45 mm

• 433.30, 434.54 and 433.92 MHz radio frequencies

• Security+2.0 encrypted rolling-code technology

• Up to 64 memory registers

• LED courtesy light

• Noise rating: 57 dB at 1 metre

Door Specifications

• Maximum lifting capacity under spring tension: 20 kg

• Suitable for steel spring-balanced roller doors

Door Opening & Closing Times

• Opening time: Approximately 13 seconds

• Closing time: Approximately 13 seconds

• Based on a 2.3 m high door.

Door Dimensions

Suitable for doors up to:

• Door height: 4.5 m / 3.0 m

• Door width: 3.6 m / 5.4 m

• Application: Single dwellings

Suitable For

The MERLIN MR655MYQ is suitable as a replacement for MR650EVO roller door openers or equivalent models, subject to compatibility with the existing door installation.
