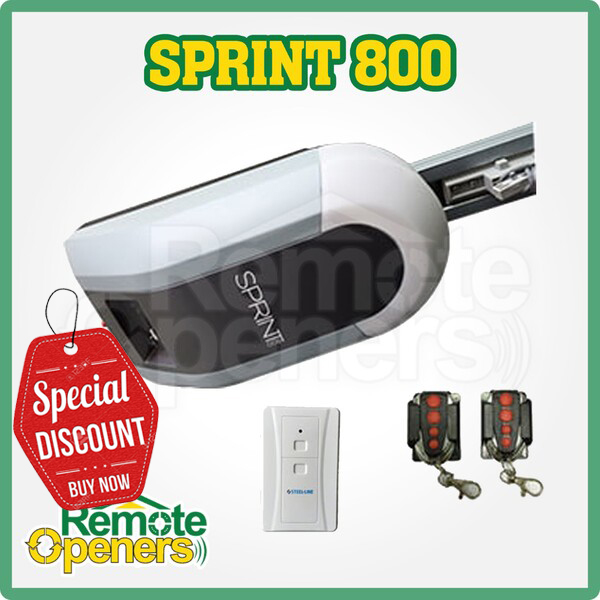

Steel-Line SPRINT800 Sectional garage Door Motor​


Listing Includes

  • 1 x Steel-line SPRINT800 Sectional Garage Door Motor
  • 2 x ZT07 Four Button Remote Controls
  • 1 x Steel-line Wireless Wall Button
  • 1 x Belt Rail
  • Installation Manual
  • FREE Delivery


  • Quality Tested Proven Technology coupled with robust design backed up by rigorous quality testing (Batch tested to 20,000 opening cycles).
  • 5 Year Warranty 5 year motor warranty, 2 year electronics warranty.
  • Australian & NZ Standards Compliant Meets AS/NZ 60335-2-95 & RCM (Regulatory Compliance Mark) accredited
  • Motor Powerful DC motor which means reduced noise and vibration on opening and closing.
  • Soft Start/Stop Function Designed to to ensure smooth and quite door operation which is important when the garage is located close to bedrooms or living areas.
  • LED Courtesy Light This provides the most convenient way to navigate through your garage environment and get in and out of your car (operates for 6 minutes).
  • Transmitter Range Remote distance: Effective operating range of up to 35m



  • 24V DC motor
  • Electrical Input: 240V
  • Rated Door area up to 12m²
  • Max door weight up to 110kg
  • Max peak pulling force: 800N
  • One piece C-rail with belt drive
  • 433.92MHz transmitter frequency with rolling code technology
  • LED courtesy light
  • Headroom required: minimum door headroom + 50mm

Door Details

  • Suitable for residential spring balanced sectional doors
  • Max door height: 2.5m
  • Max door width: varies based on height (max 12m²)


WARRANTY : 5 year motor warranty, 2 year electronics warranty.





SKU Sprint800
Model # SPRINT800
Brand Steel-Line
Shipping Weight 8.8000kg
Shipping Width 0.270m
Shipping Height 0.210m
Shipping Length 0.450m
Shipping Cubic 0.025515000m3
Unit Of Measure ea
Type Genuine
