Merlin MR855MYQ SilentDrive Elite Rolling Door Opener

Listing Includes

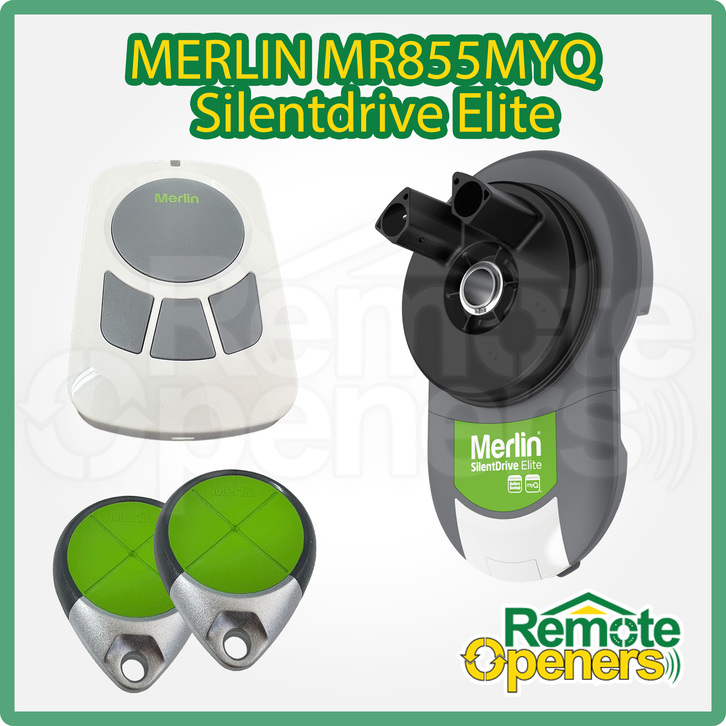

  • 1 x Genuine Merlin MR855MYQ Silent Drive Powerhead

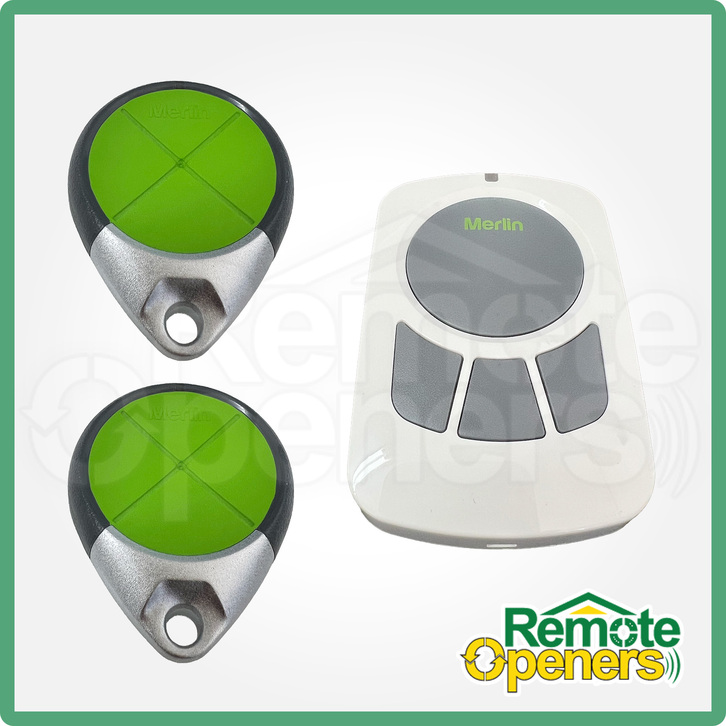

  • 2 x Four channel Premium+ key ring mini-transmitters E970M

  • 1 x Four channel Wireless wall button E148M

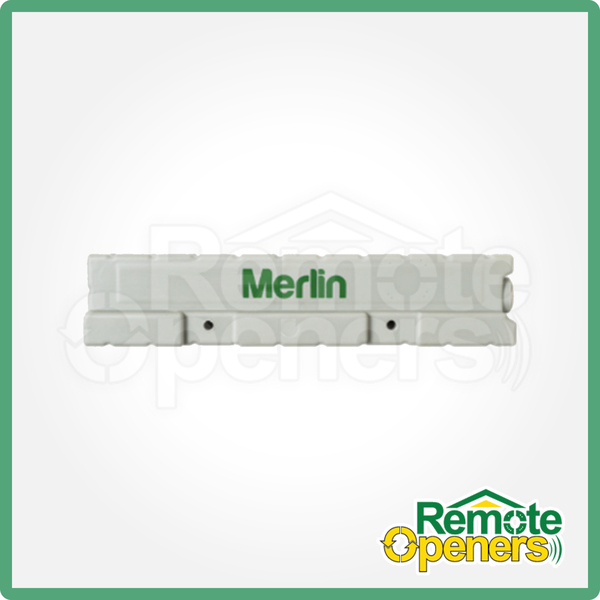

  • 1 x Weight bar

  • Easy to read instructions

  • FREE Delivery


  • Soft-Start and Soft-Stop for smooth operation

  • Quiet DC Motor eliminates noise and vibrations throuh the ceiling, providing a smooth operation

  • Premium Automatic Safety Reverse allows garage to stop and reverse automatically if obstructed.

  • Timer to Close automatically closes the garage door after a pre-set amount of time (PE beams are required for this fuction)

  • Automatic Force Sensing monitors and adjusts the force needed to open your garage with each operation.

  • Heavy-Lifting Power operates doors up to 120kgs

  • Manual Release Cord allows you to open your garage door when needed.

  • Optional Extras - Battery Backup, Merlin MYQ Smart Phone


The NEW SilentDrive Elite is myQ compatible, Battery Backup compatible with bright LED lighting, quiet operation and includes 2 x premium hand held remotes.



Peak pulling force 550N
Maximum Door Weight Up to 120kg
Maximum Recommended Door Size 18m2

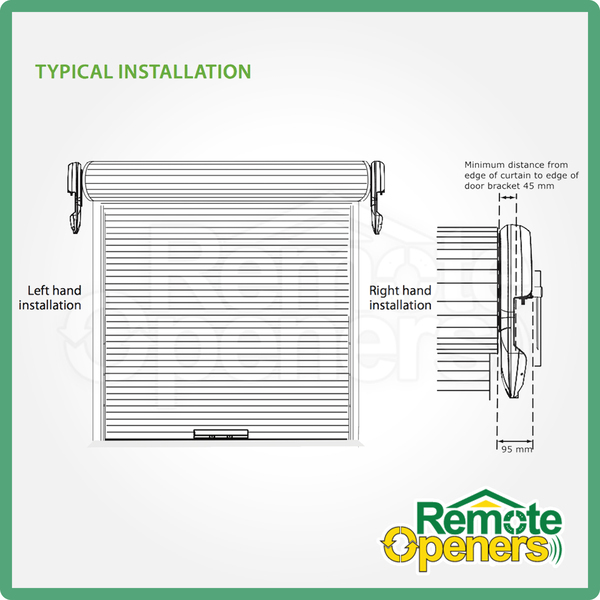

Minimum Side Room Requirement 45mm
Motor Type 24V DC Permanent Magnet
Motor Power 100W
Input Voltage    240V AC
Operating Frequency 433.30, 434.54
and 433.92 MHz with Security +2.0
Coding System Merlin Security +2.0 technology
Code Combinations 3.4x1038 code combinations
Storage Capacity

Up to 64 memory registers


Courtesy Light 12 premium ultrabright LEDs
Optional Extras

MYQ Smart Phone Compatibility Kit

Battery Backup


WARRANTY : One Year Merlin Online  Warranty Against Manufacturing Defects.

( Information  Source: Merlin's Official Website)

WARNING! This product contains Lithium coin batteries.

KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

For more information please review the button battery safety information available on the Australian Competition & Consumer Commission (ACCC) website

Model # MR855EVO
Brand Merlin Garage Door Openers
Shipping Weight 8.6000kg
Shipping Width 0.320m
Shipping Height 0.220m
Shipping Length 0.480m
Shipping Cubic 0.033792000m3
Unit Of Measure ea
Type Genuine


6 May 2020
Awesome product.. easy to install.. quiet and efficient... Remote openers were super fast with postage and best price hands down

Merlin MR855MYQ SilentDrive Elite Garage Roller Do

8 April 2020
This roller door opener is pure magic. I had another brand on the doors for many years and decided I needed something better. These units, which I bought two, one for each garage door, have amazing technology built into them. They are so quiet compared to my original units and open doors quicker. It is the distance the remote control works over that I find the best, the doors can be opened from fifty metres away, and through the car windows! Installation took less than one hour per door and programming is simple. These openers get the highest recommendation from my better half and myself!
