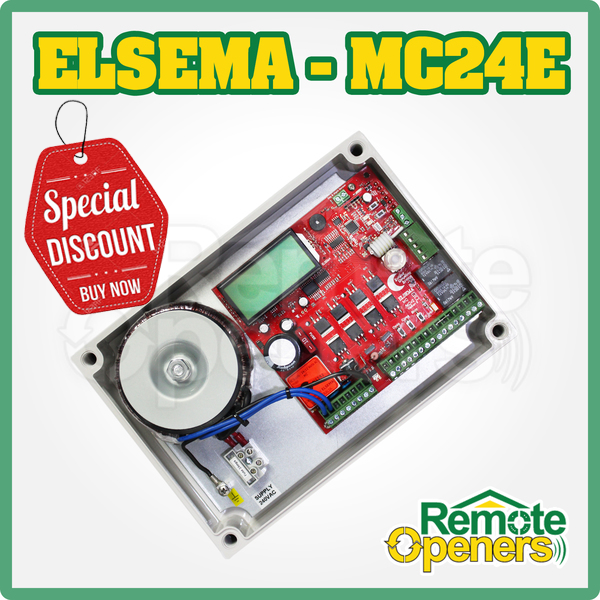

Elsema MC24E Universal Motor Control Card

Universal Controller for Automatic Single & Double Sliding and Swing Gates

Product Description

The Elsema MC24E Universal Controller is a versatile and advanced motor control solution designed for automatic sliding and swing gate applications. Supporting both single- and double-motor configurations, the MC24E provides reliable 24V DC motor control together with comprehensive safety, adjustment and energy-saving features.

Listing Includes

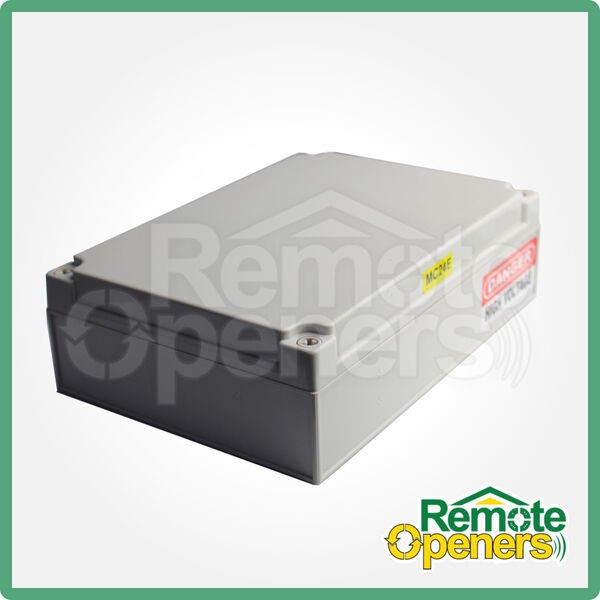

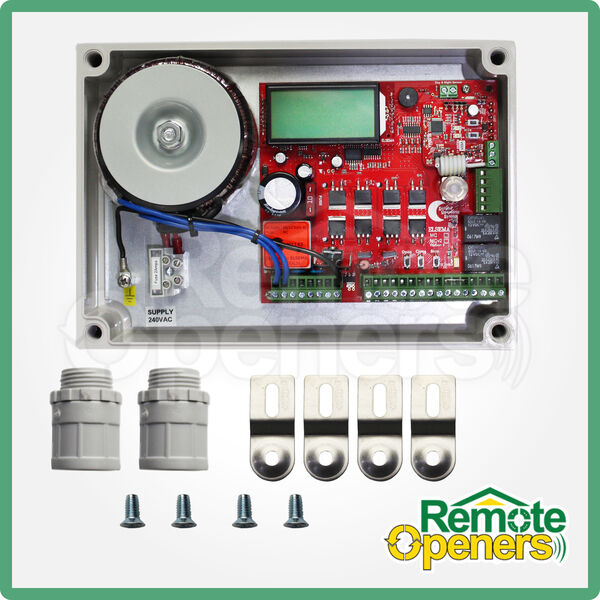

• 1 × Elsema MC24E Control Box – Universal Controller for Automatic Sliding and Swing Gates

Key Features

• Suitable for both sliding and swing gates

• Supports single- or double-motor operation

• Designed for 24V DC motors

• Soft start and soft stop for smooth and controlled gate movement

• Adjustable motor speed and force

• Large 4-line LCD display showing controller status and setup instructions

• One-touch setup for easy configuration

• Automatic gate profiling using advanced intelligent technology

• Multiple input functions, including:

  • Push button

  • Open-only

  • Close-only

  • Stop

  • Pedestrian access

  • Photoelectric safety beam

• Supports limit switch inputs or mechanical stops

• Adjustable automatic closing function

• Adjustable obstruction load detection

• Adjustable pedestrian access settings

• Adjustable electric lock and courtesy light outputs

• Variable photoelectric safety beam functions

• Energy-saving mode to help reduce operating costs

• 24V DC auxiliary output for powering compatible accessories

• Service counters for maintenance monitoring

• Password protection

• Holiday mode

• Additional advanced control and configuration functions

• Built-in 24V battery charger for backup battery systems

• Low 12mA standby current, making the controller well suited to solar-powered gate applications

Warranty

12-Month Warranty

The Elsema MC24E is designed to provide reliable and flexible control for automatic gate systems, offering advanced functionality, safety features and efficient energy consumption for a wide range of sliding and swing gate applications.
