Merlin Slide 600 Automatic Sliding Gate Opener – MGSK600

The Merlin Slide 600 Gate Opener (MGSK600) is a reliable and efficient automatic gate automation solution designed for residential properties. Engineered to deliver smooth, quiet and dependable operation, it is suitable for sliding gates weighing up to 600 kg and measuring up to 8 metres in width.

Featuring advanced Security+ 2.0® rolling code technology, premium automatic safety reverse and soft-start and soft-stop functionality, the Slide 600 enhances everyday convenience while helping improve the safety and security of your property. It is compatible with myQ technology and battery backup, providing options for smart access control and continued operation during power outages when the required accessories are installed.

Key Features:

• Suitable for sliding gates up to 600 kg and 8 metres wide

• Smooth and quiet operation with a 24V DC motor

• Security+ 2.0® encrypted rolling code technology

• Automatic safety reverse and force-sensing technology

• Soft-start and soft-stop for controlled gate movement

• myQ connectivity compatible with the required accessories

• Battery backup compatible (additional accessory required)

• IP44 weather-resistant design for outdoor installation

• Compatible with mains-voltage and low-voltage configurations

• Backed by a 3-year warranty

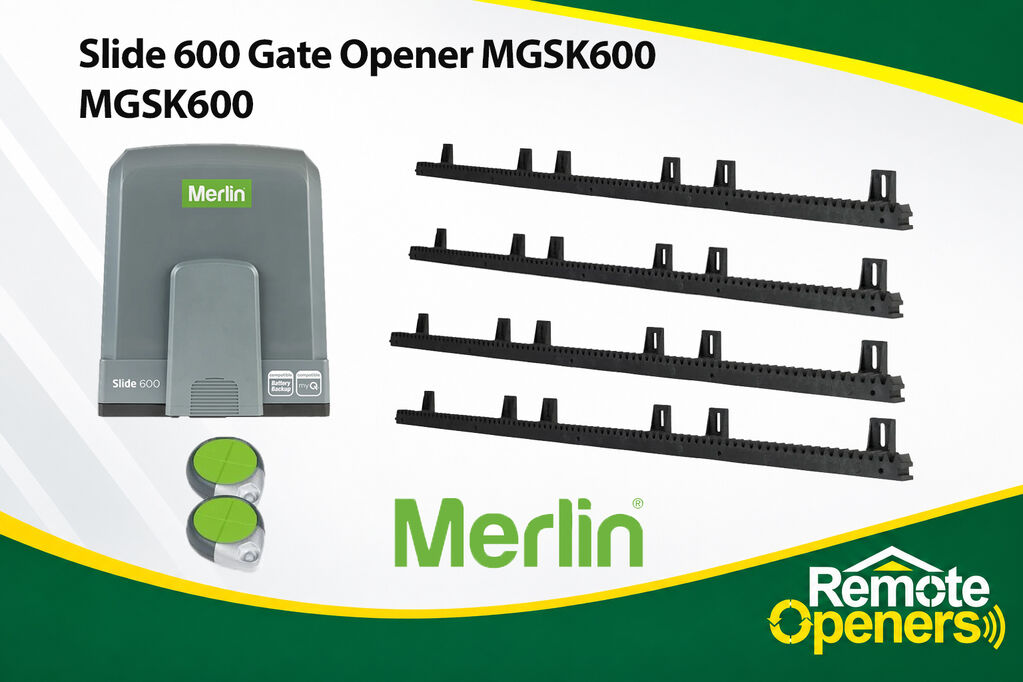

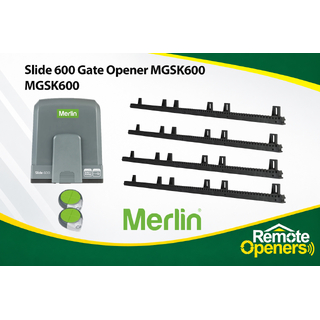

Package Includes:

• 1 × Merlin Slide 600 Gate Opener

• 4 × Sliding Gate Racks

• 2 × Compact Fob Remote Controls

• 1 × Transformer Box Low Voltage Kit (where applicable to the selected kit)

The Merlin Slide 600 is an excellent choice for homeowners seeking dependable gate automation, enhanced security and convenient access control.

Note: Maximum gate capacity depends on correct installation and the gate's condition. myQ functionality and battery backup require compatible additional accessories. Package contents may vary between the mains-voltage and low-voltage versions.

Maximum Gate Width & Weights

• Maximum weight for single gate: 600kg
• Maximum width for single gate: 8m

Standard Specifications

• Main AC Supply: 220-240Vac; 50/60Hz or 24V Low Voltage
• Motor Voltage: 24 VDC
• Input Power: 120 W
• Ambient Temperature Range: -20 - +55*C
• Max peak pulling force: 18 Nm
• Max Travel Speed: 31 cm/s
• Radio Frequency: 433.30, 433.92, 434.54 MHz with Security+ 2.0 Technology
• Compatible with myQ technology
• Gate opener capacity of up to 64 memory registers
• IP44 Weather Resistant
