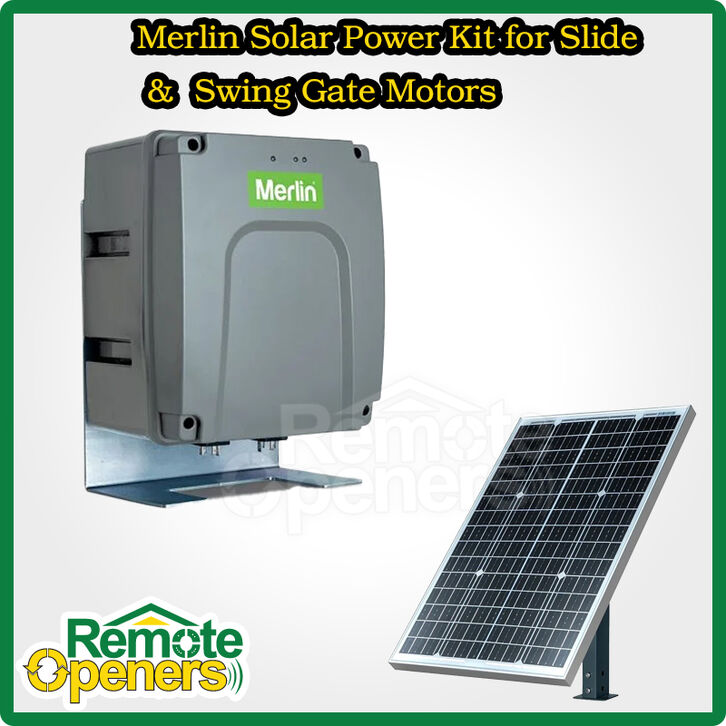

Merlin Solar Power Kit for Slide/Swing Gate Motors
Merlin Solar Power Kit
For Slide & Swing Gate Motors
Package Includes
- Solar panel with 4m cable
- Solar panel mounting bracket and hardware
- Solar power enclosure with mounting brackets
- 18Ah Batteries x 2
- 240V Mains power pack with battery charge plug & adaptor cable
- Solar power kit to gate opener 4m power cable
Description
The Merlin Solar Power Kit is a complete solar solution for slide and swing gate motors. Compatible with all current Merlin and Grifco gate openers, including Merlin Slide 600 (MGSK600), Merlin Swing A 200 (MGASK/MGADK), Merlin Swing L 300 (MGLSK/MGLDK), Merlin Swing LR 500 (MRGLSK), and Grifco LG-Drive (GLD-GO). The kit allows secure, off-grid operation with high-efficiency solar panels and battery storage.
Features
- Weatherproof solar panel with 4m cable
- Solar enclosure with mounting brackets
- Two 18Ah batteries for reliable operation
- 240V mains power pack with battery charger and adaptor cable
- Back-up and continuous operation even without grid power
- Customisable for single or double gate setups
- Compatible with all current Merlin & Grifco gate openers
Specifications
| Solar Panel Peak Power (Pmax) | 40W / 34.2V |
| Max Current | 1.17A |
| Max Voltage | 34.2V |
| Solar Panel Operating Temp | -40°C to +85°C |
| Solar Panel IP Rating | IP65 |
| Solar Panel Dimensions | 620mm x 400mm x 25mm |
| Solar Panel Weight | 2.6kg |
| Solar Power Supply Rated Voltage | 21.6VDC to 35VDC |
| Max Output Current | 5 Amps |
| Battery Capacity | 2 x 18Ah |
| Recharge Time (AC Charger) | Approx 24 hours |
| Operating Temp Supply | -20°C to +50°C |
| IP Rating Supply | IP65 |
| Supply Dimensions | 335mm x 230mm x 210mm |
| Supply Weight | 15kg |
| SKU | ML_SOLARKIT |
| Brand | Merlin |
| Shipping Weight | 27.5000kg |
| Shipping Width | 0.660m |
| Shipping Height | 0.320m |
| Shipping Length | 0.370m |
| Shipping Cubic | 0.078144000m3 |
