Remote Openers

GATE, GARAGE DOOR & ACCESS CONTROL COMPONENTS

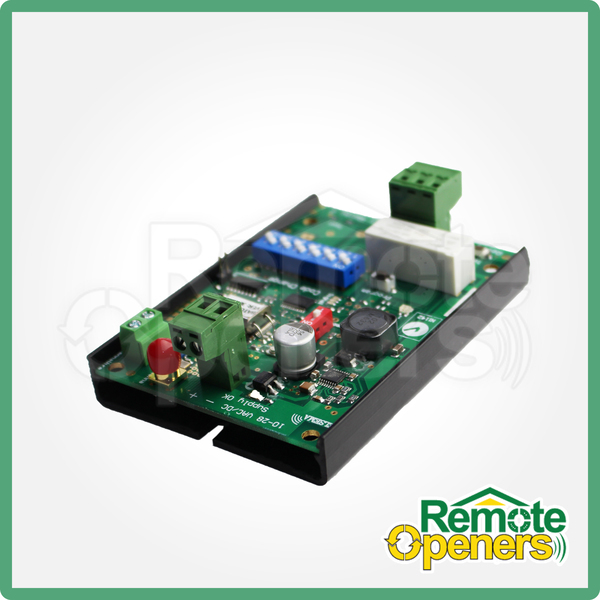

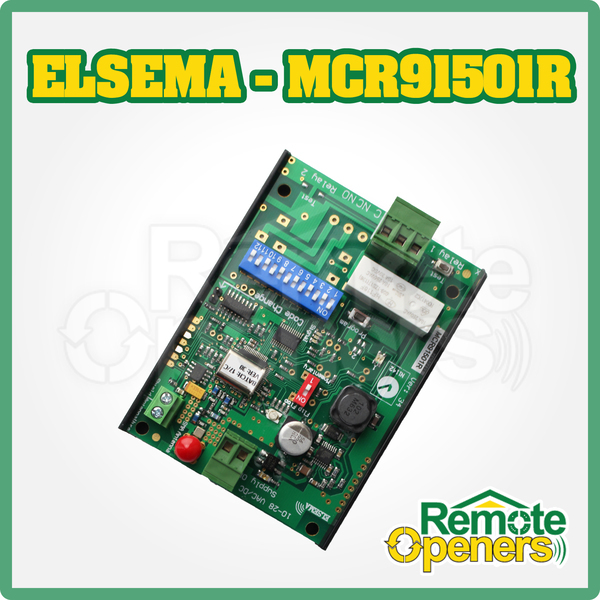

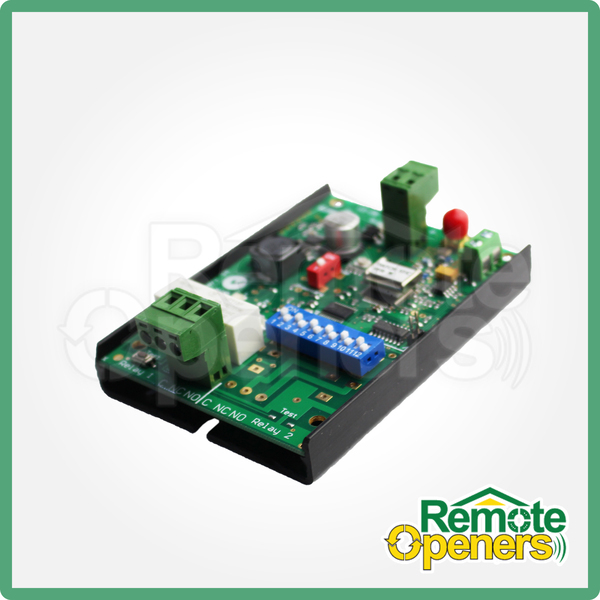

MCR91501R Single-Channel 915MHz Receiver

Multicode Receiver with Frequency-Hopping Technology

The MCR91501R Single-Channel Multicode Receiver is designed for compatible gate, garage door and access-control applications. It operates across the 915MHz to 928MHz frequency range using frequency-hopping technology.

The receiver supports digital coding through a 12-way DIP switch or compatible encrypted coding. Crystal-controlled circuitry provides stable and accurate operation, while selectable momentary and latching modes allow the receiver to suit different installation requirements.

Listing Includes

✓ 1 × MCR91501R Single-Channel Multicode Series 915MHz Receiver

Product Features

✓

Frequency hopping across the 915MHz to 928MHz range

✓

Single-channel Multicode Series receiver

✓

Digital coding using a 12-way DIP switch or compatible encrypted coding

✓

Crystal-controlled circuitry for stability and accuracy

✓

Designed to allow multiple compatible transmitters and receivers to operate nearby with reduced interference or jamming

✓

On-board red LED indicates signal reception

✓

Wide operating supply-voltage range with low current consumption

✓

User-selectable momentary and latching modes

Product Specifications

Model	MCR91501R
Product Type	Wireless Receiver
Number of Channels	1 Channel
Frequency Range	915MHz to 928MHz
Coding Options	12-Way DIP Switch or Compatible Encrypted Coding
Operating Modes	Momentary and Latching
Signal Indicator	On-Board Red LED
Package Quantity	1 Receiver

Please Check Before Ordering

Confirm that your existing transmitter, coding system, frequency and power requirements are compatible with the MCR91501R receiver. Professional installation is recommended for gate, garage door and access-control systems.

Warranty

Warranty period to be confirmed before publishing this listing.

Remote Openers Australia

Garage Door, Gate and Access-Control Components

www.remoteopeners.com.au

SKU	MCR91501R
Brand	Elsema
Shipping Weight	0.2500kg
Shipping Width	0.060m
Shipping Height	0.030m
Shipping Length	0.120m
Shipping Cubic	0.000216000m3
