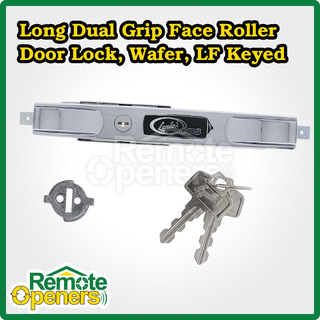

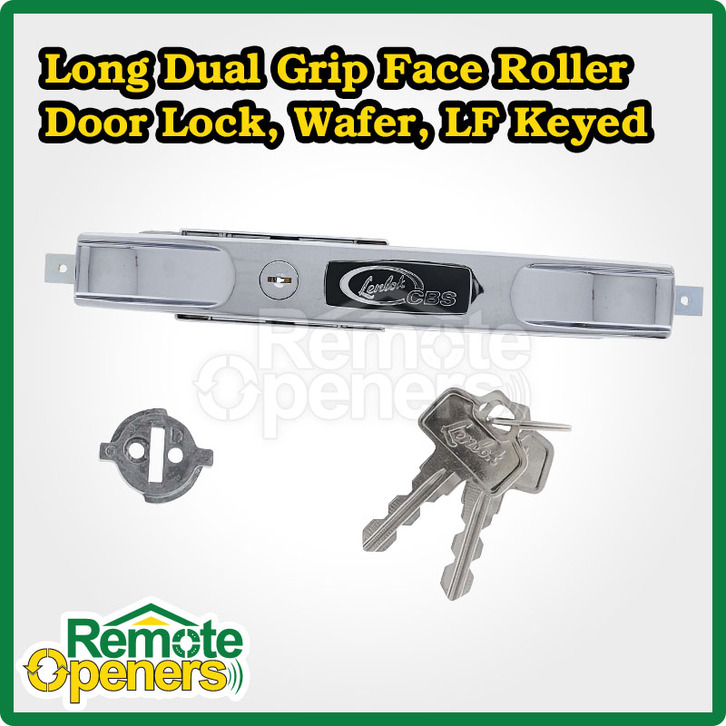

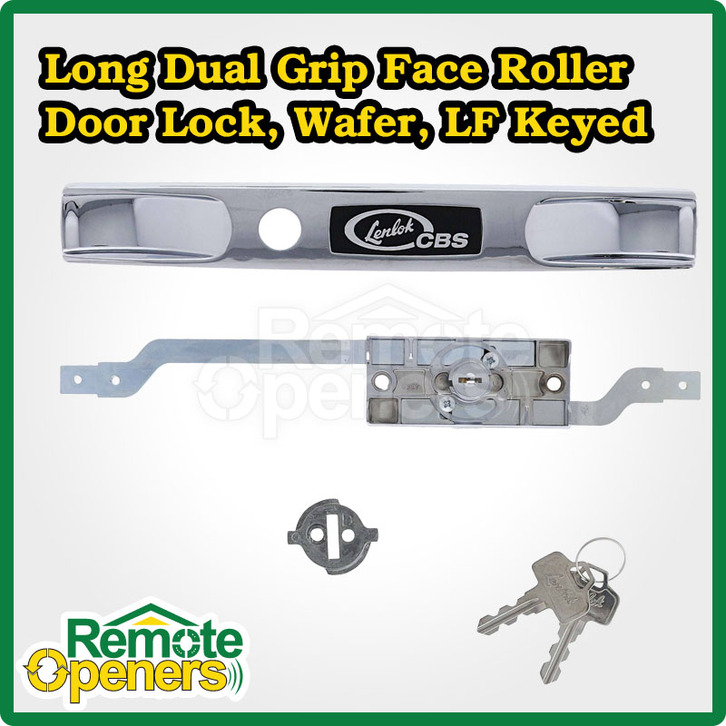

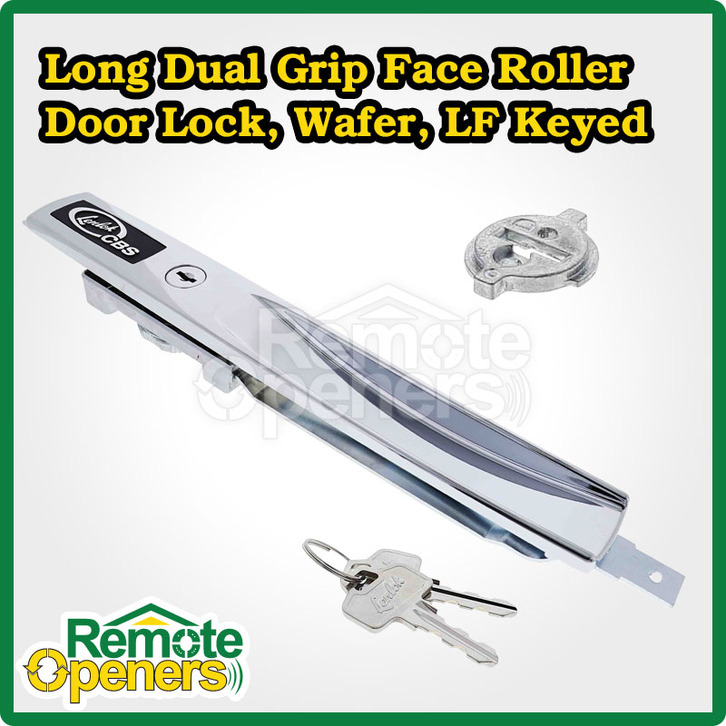

Long Dual Grip Face Roller Door Lock, Wafer, LF Keyed Alike #4323

What’s Included

• Dual Grip Face Roller Door Lock

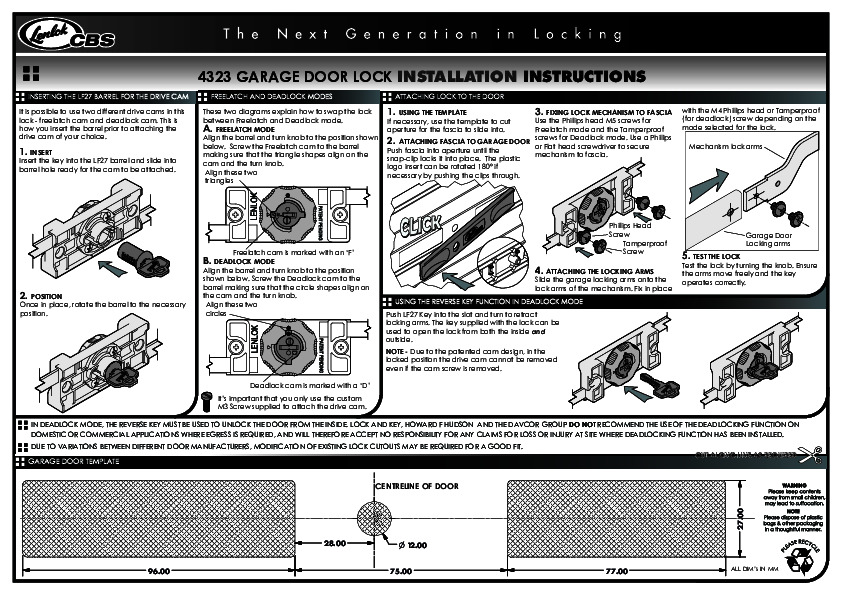

• Instruction Manual
• 1 Year Manufacturer’s Warranty

Product Specifications

Lenlok Domestic Roller Door Locks

Lenlok Roller Door Locks have been completely redesigned from the ground up. With advancements in design, engineering and manufacturing, this range is ideal for retrofit upgrades and brand new installations.

Available Lenlok Models

• 4321: Narrow style version with a small rectangular fascia and dual finger grips.
• 4323: Narrow style version distinguished with dual finger grips.
• 4324: Narrow style version with dual finger grips and short arms lock body similar to 4321.
• 4369: Narrow style version with a slimline fascia.

Barrel and Keyway Information

• Uses two different barrel systems depending on series.
• C4 4 pin cylinder tumbler system is used for one series.
• CBS wafer barrel LF32, also known as LF27, is used for another series.
• Can be supplied with or without barrel and cylinder depending on product configuration.
• C4 4 pin cylinder is LKW5 / LW4 keyway.
• TES5-4PIN cylinder is TES5 / TE2 keyway.
• CBS wafer barrel is LF32 / Silca LF27 keyway.

Key Features

• Ergonomically designed internal operating knob for a more positive grip.
• Lock body designed for minimum protrusion, smaller than previous Lenlok models.
• Barrel and keys supplied along with cams, cam screws and cylinder screws.
• Locking arms have a 19mm throw.
• High quality satin chrome finish zinc alloy fascia.
• High quality full metal locking mechanism.
• Patented integrated mechanism protectors help stop door pressure being applied to the mechanism.
• Galvanised steel slide arms provide increased strength.
• Threaded holes in slide arms make installation easier.
• Available in display pack format for retail purposes.

Model Compatibility Notes

• 4323 and 4369 models: Fascia incorporates a patented stainless-steel spring clip to hold the fascia in place during installation.
• 4323 and 4369 models: Feature an interchangeable logo insert that can be flipped 180 degrees for lock handing.
• 4321 model: Retrofits to existing market standards such as Lenlok 3321.
• 4323 model: Retrofits to existing market standards such as Lenlok 3323.
• 4324 model: Retrofits Lock Focus AV4.
• 4369 model: Retrofits to existing market standards such as Lenlok 3369.
