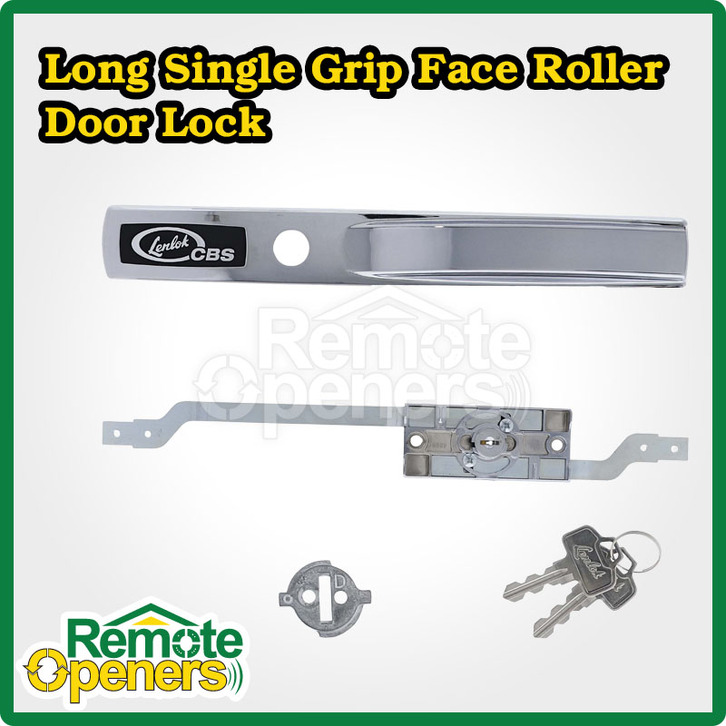

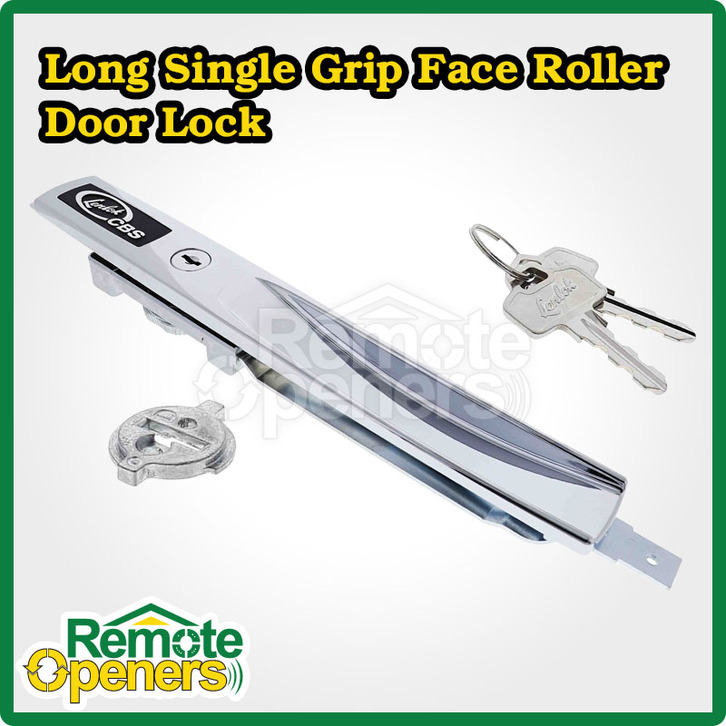

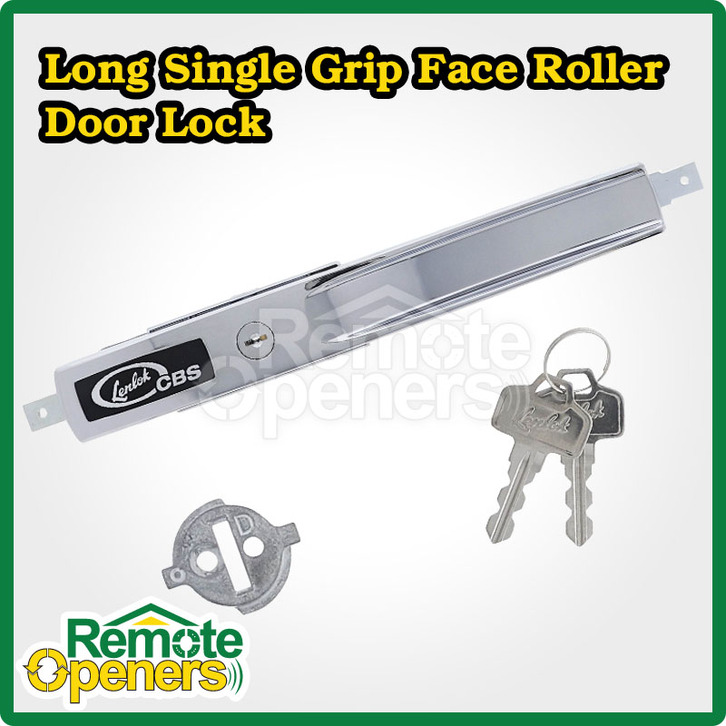

Lenlok 4369 Long Single Grip Face Roller Door Lock, Wafer, LF Keyed Alike KA1

What’s Included

• Lenlok 4369 Long Single Grip Face Roller Door Lock
• Manual
• 1 Year Warranty

Product Specifications

Lenlok Domestic Roller Door Locks

Lenlok Roller Door Locks have been completely redesigned from the ground up. With advancements in design, engineering and manufacturing, this range is a must have for retrofit upgrades and brand new installations.

Available Lenlok Models

• 4321: Narrow style version with a small rectangular fascia and dual finger grips.
• 4323: Narrow style version distinguished with dual finger grips.
• 4324: Narrow style version distinguished with dual finger grips and short arms lock body similar to 4321.
• 4369: Narrow style version with a slimline fascia.

Barrel and Keyway Information

• Uses two different barrel systems depending on the series.
• C4 4 pin cylinder tumbler system is used for one series.
• CBS wafer barrel LF32, also known as LF27, is used for another series.
• Can be supplied with or without barrel and cylinder depending on product configuration.
• C4 4 pin cylinder is LKW5 / LW4 keyway.
• TES5-4PIN cylinder is TES5 / TE2 keyway.
• CBS wafer barrel is LF32 / Silca LF27 keyway.

Key Features

• Ergonomically designed internal operating knob offers a more positive grip.
• Lock body designed for minimum protrusion, smaller than previous Lenlok models.
• Barrel and keys supplied along with cams, cam screws and cylinder screws.
• Locking arms have a 19mm throw.
• High quality satin chrome finish zinc alloy fascia.
• High quality full metal locking mechanism.
• Lock body has patented integrated mechanism protectors to help prevent door pressure being applied to the mechanism.
• Slide arms are constructed from galvanised steel for increased strength.
• Threaded holes in slide arms make installation easier.
• Can be purchased in a display pack for retail purposes.

4369 Model Notes

• The 4369 model is a narrow style roller door lock with a slimline fascia.
• 4323 and 4369 models include a patented stainless-steel spring clip to help hold the fascia in place during installation.
• 4323 and 4369 models include an interchangeable logo insert.
• The logo insert can be flipped 180 degrees for handing of the lock.
• The logo insert is made from UV stabilised high grade material.
• Personalised customer logo inserts may be available on request, subject to minimum quantities.
