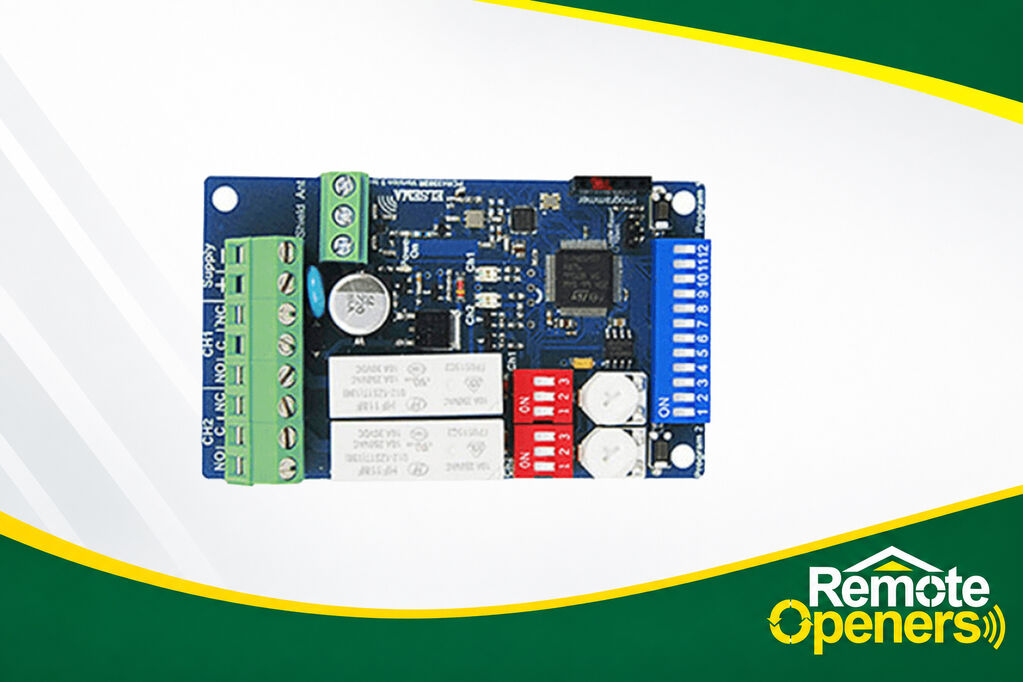

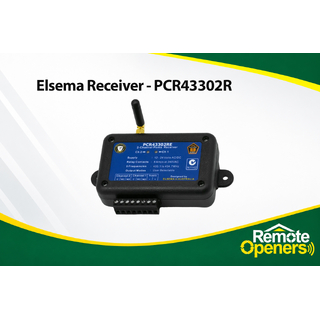

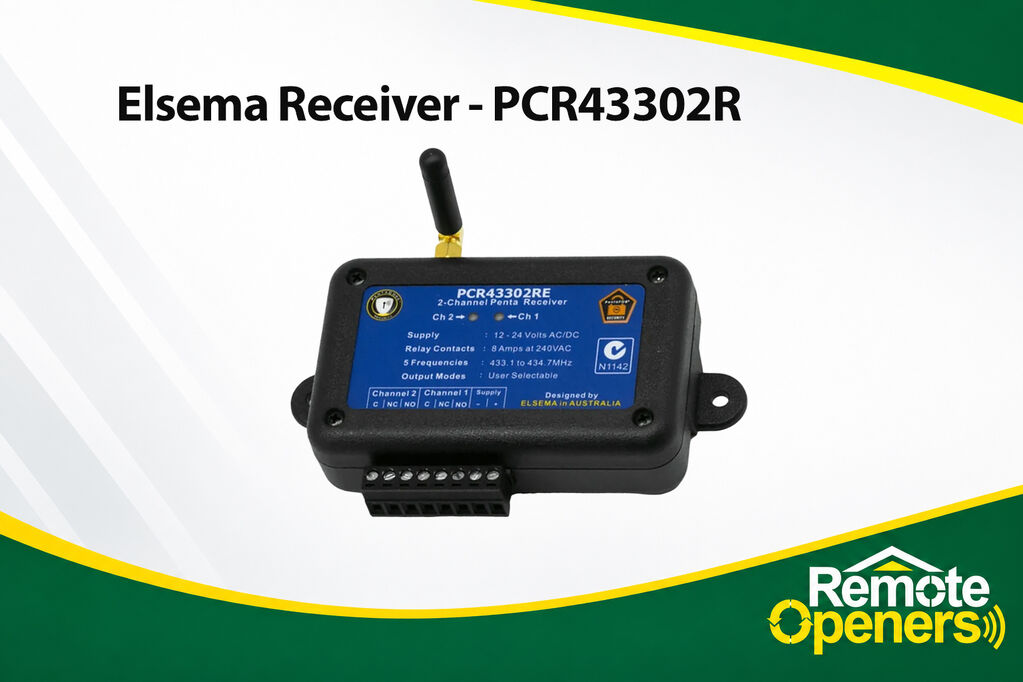

Elsema PCR43302RE 2-Channel 433MHz Penta Receiver with Relay Outputs

The Elsema PCR43302RE Receiver is a versatile and reliable wireless receiver designed for automatic gate systems, garage doors, roller shutters, lighting and other access control applications. Featuring two independent relay output channels and an enclosed housing, it provides flexible control and convenient integration with compatible automation equipment.

Operating across the 433.1–434.7 MHz frequency band, the receiver uses frequency-hopping technology to support reliable wireless communication. Its PentaCODE® dual-coding system offers a choice of encrypted coding with over 17 billion code combinations or traditional 12-way DIP switch coding. The receiver also supports unlimited compatible remote controls, making it suitable for installations requiring multiple users.

Key Features:

• Two independent relay output channels

• 433MHz frequency-hopping technology

• Compatible with Elsema PentaFOB® and PentaCODE® remote controls

• Supports encrypted coding and 12-way DIP switch coding

• Unlimited compatible remote controls can be programmed

• Selectable output modes, including momentary and latching

• Dual antenna capability for enhanced reception options

• Enclosed design for convenient installation

• Suitable for automatic gates, garage doors, roller shutters and other automation systems

Technical Specifications:

• Model: PCR43302RE

• Operating frequency: 433.100–434.700 MHz

• Power supply: 12–24V AC or DC

• Relay outputs: 2 changeover relays

• Relay contact rating: Up to 10A at 240V AC

• Operating temperature: -5°C to +50°C

• Dimensions: 136 × 85 × 33 mm

• Weight: Approximately 145 g

The Elsema PCR43302RE is an ideal solution for users seeking flexible, multi-channel wireless control for compatible gate and automation systems.

Note: Compatibility depends on the transmitter and the equipment being controlled. Please confirm electrical ratings and installation requirements before use.
